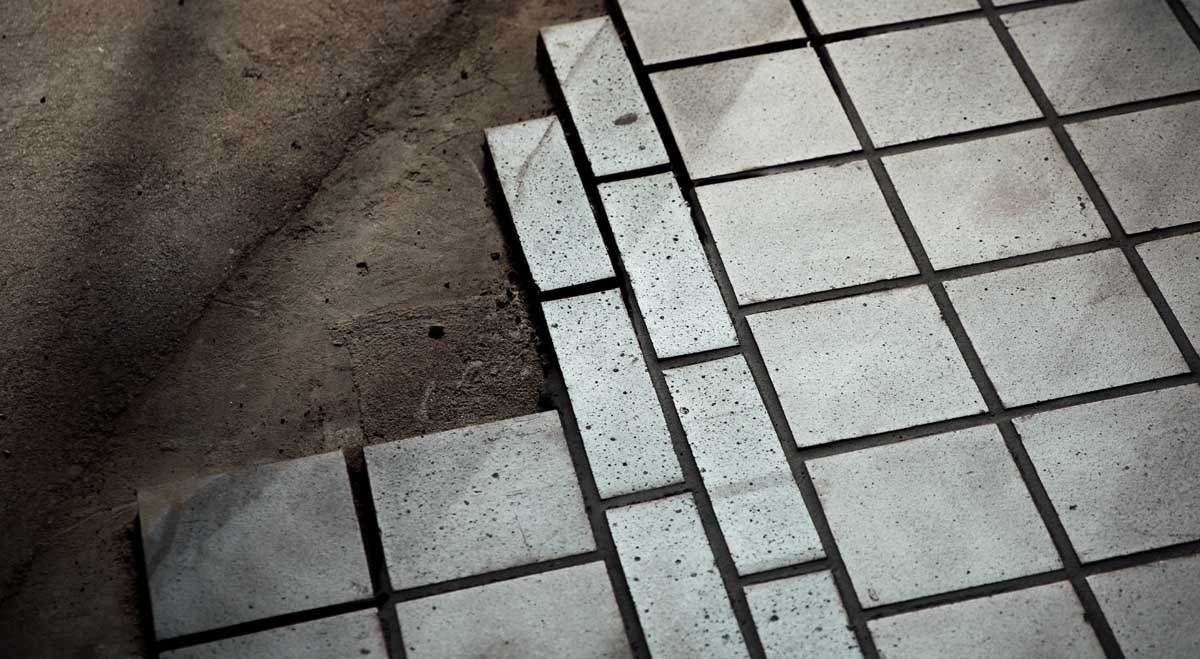

Staffs Blue Quarry Tile product shot

This is a very popular quarry tile in both contemporary and heritage schemes, and in commercial and domestic projects alike.  Its traditional Staffordshire blue clay colour with its natural shade variations  works well in Victorian restoration projects as well as in contemporary interior spaces bringing character and interest.  Different effects can be achieved with different laying patterns.

interior exterior icon small      Frost resistant
      Suitable for exterior & interior

slip resistance icon small      High slip resistance
      Click here for more info

      Category R11 C

Request sample

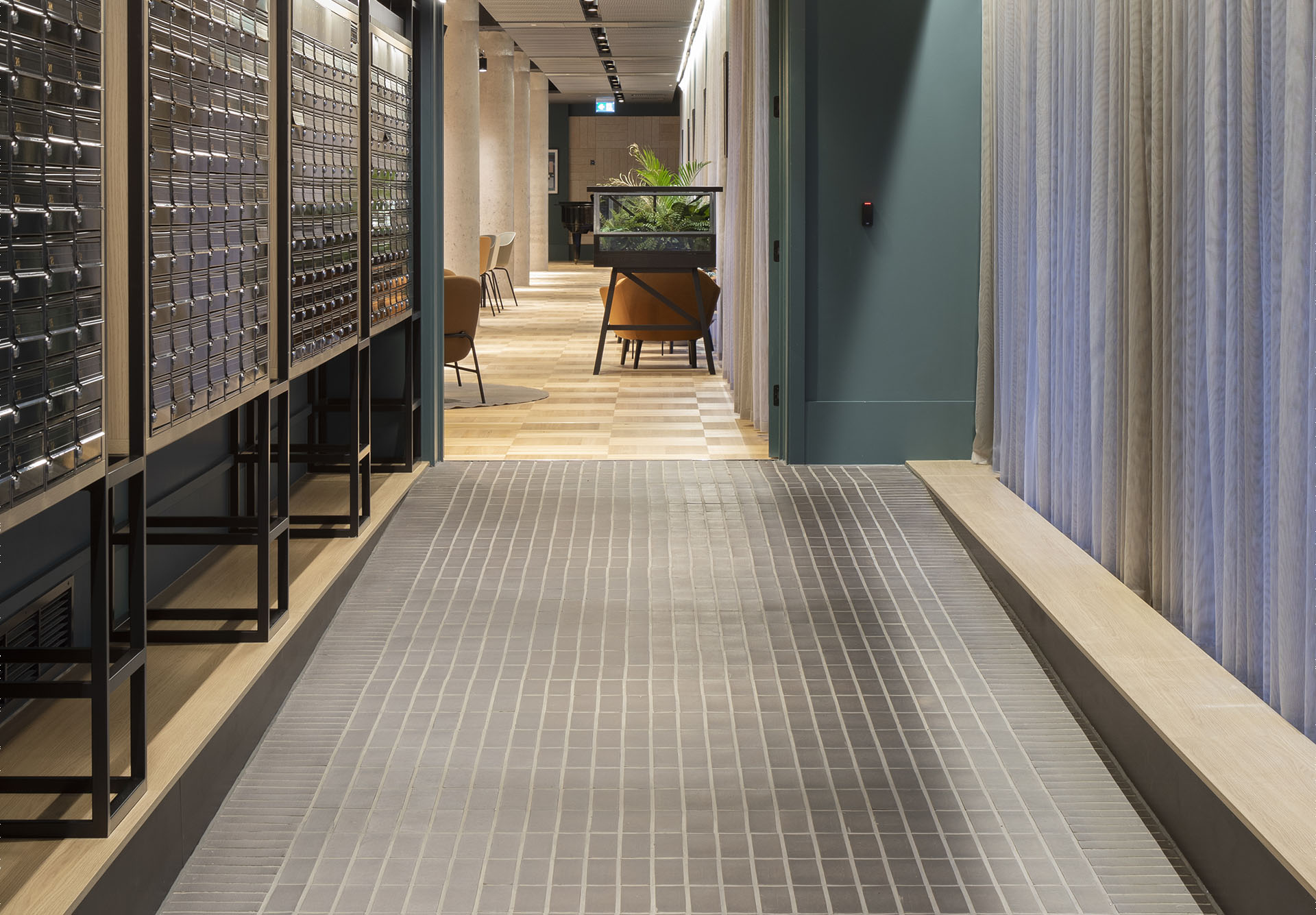

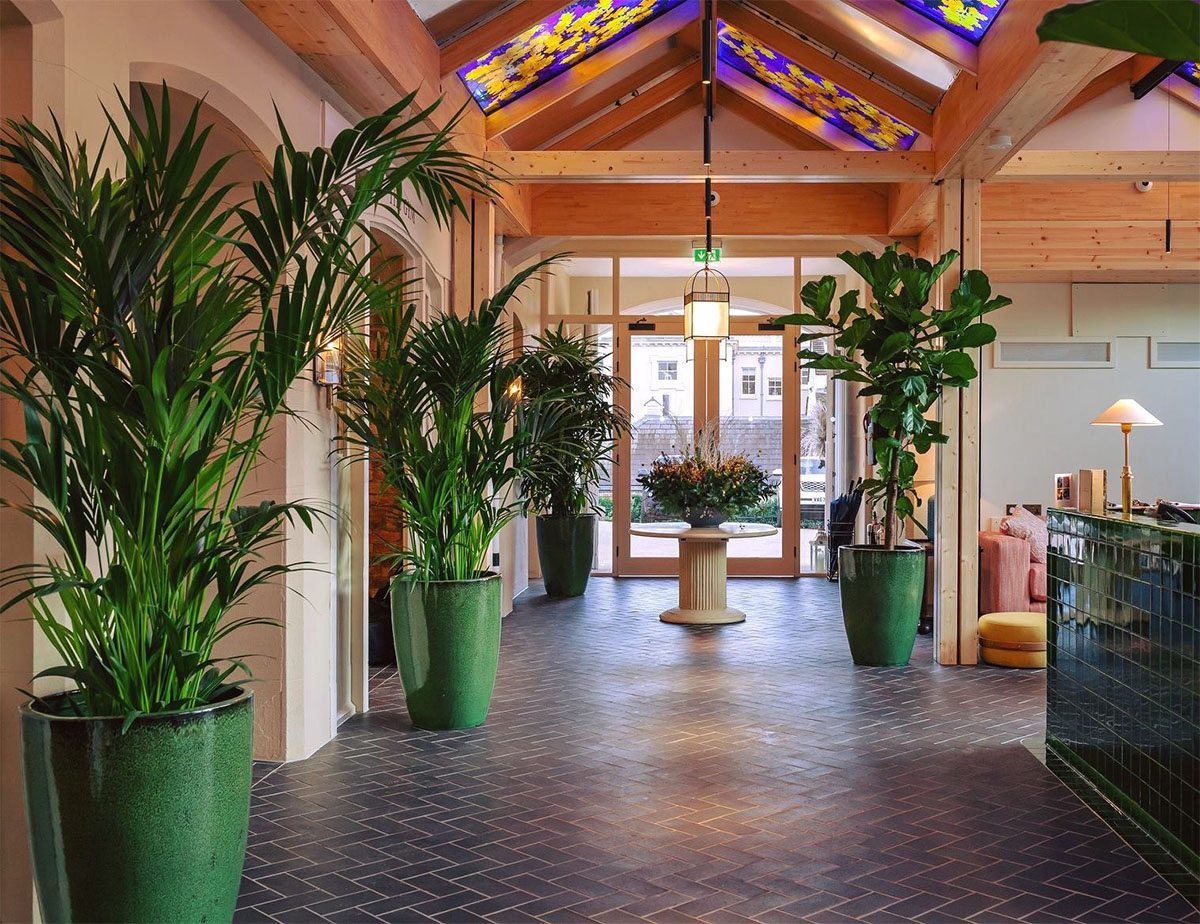

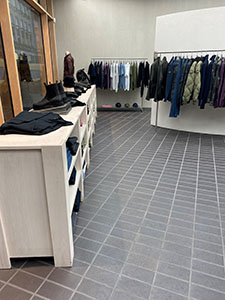

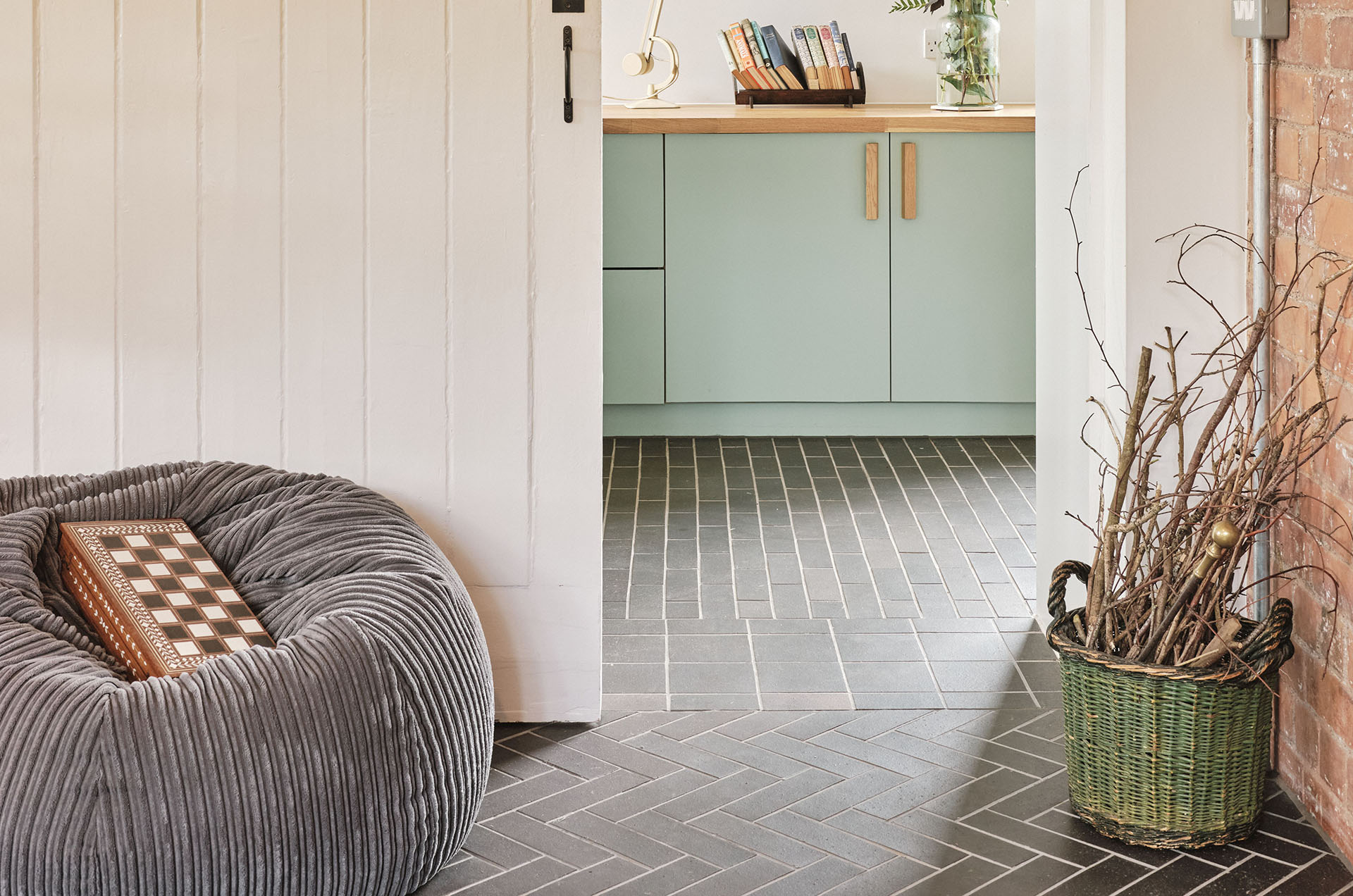

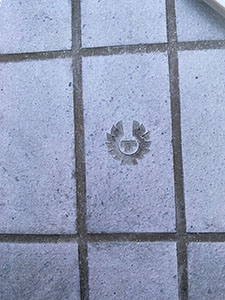

Case Studies

Blending inside and outside spaces

Staffs blue brick sized quarry tilesblending spaces

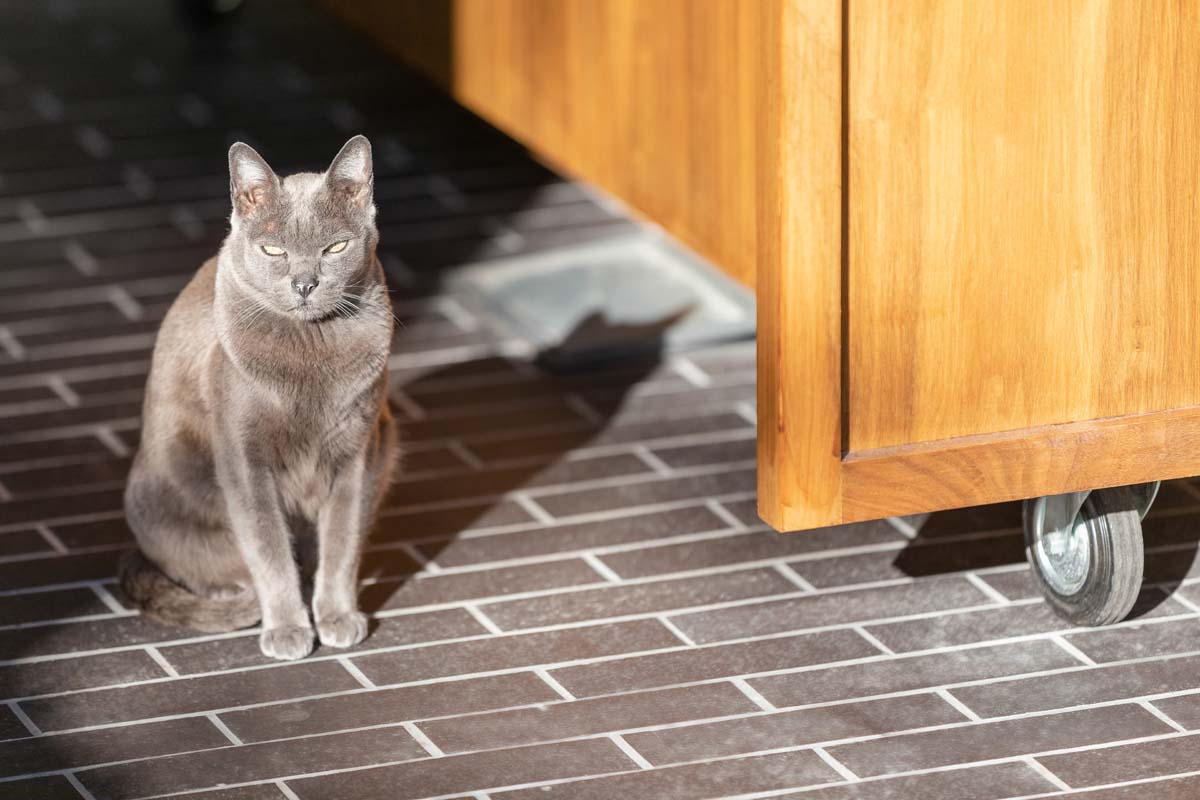

Jo Townshend Architects were asked to replace an existing single storey extension to a large residential property in Brixton, with a light, openable space which would encourage parties and gatherings, and to achieve this with a minimal environmental impact.  They decided to use Staffordshire blue brick-sized tiles both inside and outside of the new extension, aiding a seamless connection between the interior and exterior, and creating a flexible space for open plan living. Full details>>

Ducie Street Warehouse

Ducie Street 6Ducie Street 4

Designed by David Waddington and Pablo Flack, founders of London’s Bistrotheque, and Archer Humphryes  Architects, Ketley quarry tiles suited the industrial context of the building as well as providing a low maintenance and hard-wearing flooring solution.  Staffordshire blue square tiles,rectangular tiles and brick sized tiles have been laid to define the spaces and add interest to the floors.  Full details

Maggie Centre in Manchester

Maggie Centre 1    Maggie Centre 2

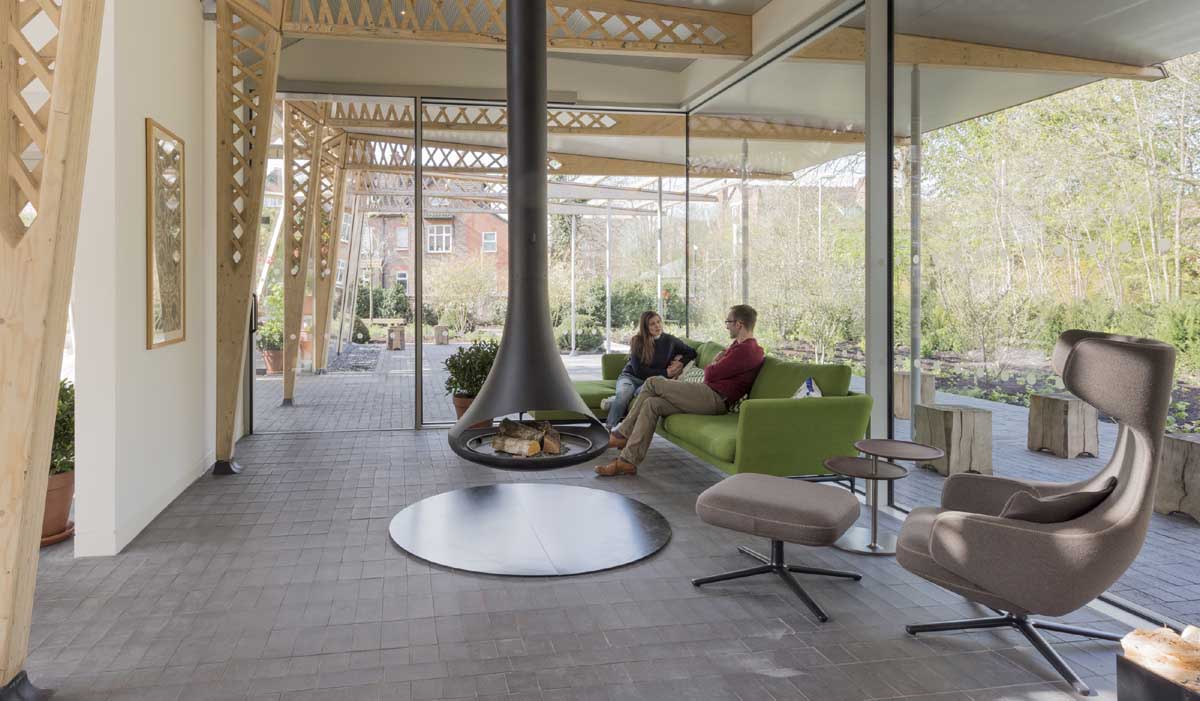

The  Maggie Centre in Manchester, designed by Foster + Partners features Ketley staffordshire blue quarry tiles in a stack bond inside the timber framed building and Ketley staffs blue pavers extend out into the garden.  The pallet of natural materials helps to create a  calm environment  and a light and homely space where people can relax.  The staffs blue paving on the veranda and in the garden blend perfectly with the staffs blue quarry tiles inside the building helping to bring the  theraputic qualities of nature and the outdoors into the building, blurring the distinction between inside and out.  Full details

The Horseshoe Pub in Hampstead

horseshoe pub 2horseshoe pub 3

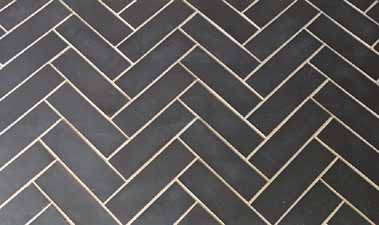

This gastro pub recently underwent a major renovation by DG Professional Interiors and a new quarry tile floor was a key component of the new interior design.   Rectangular staffordshire blue quarry tiles  (in the brick size) have been laid in a herringbone pattern with a light coloured mortar.

Temper Restaurant Soho

temper 2     temper 3

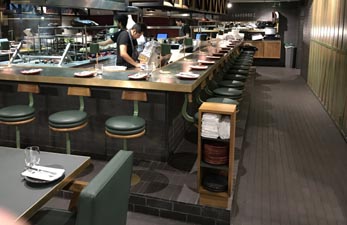

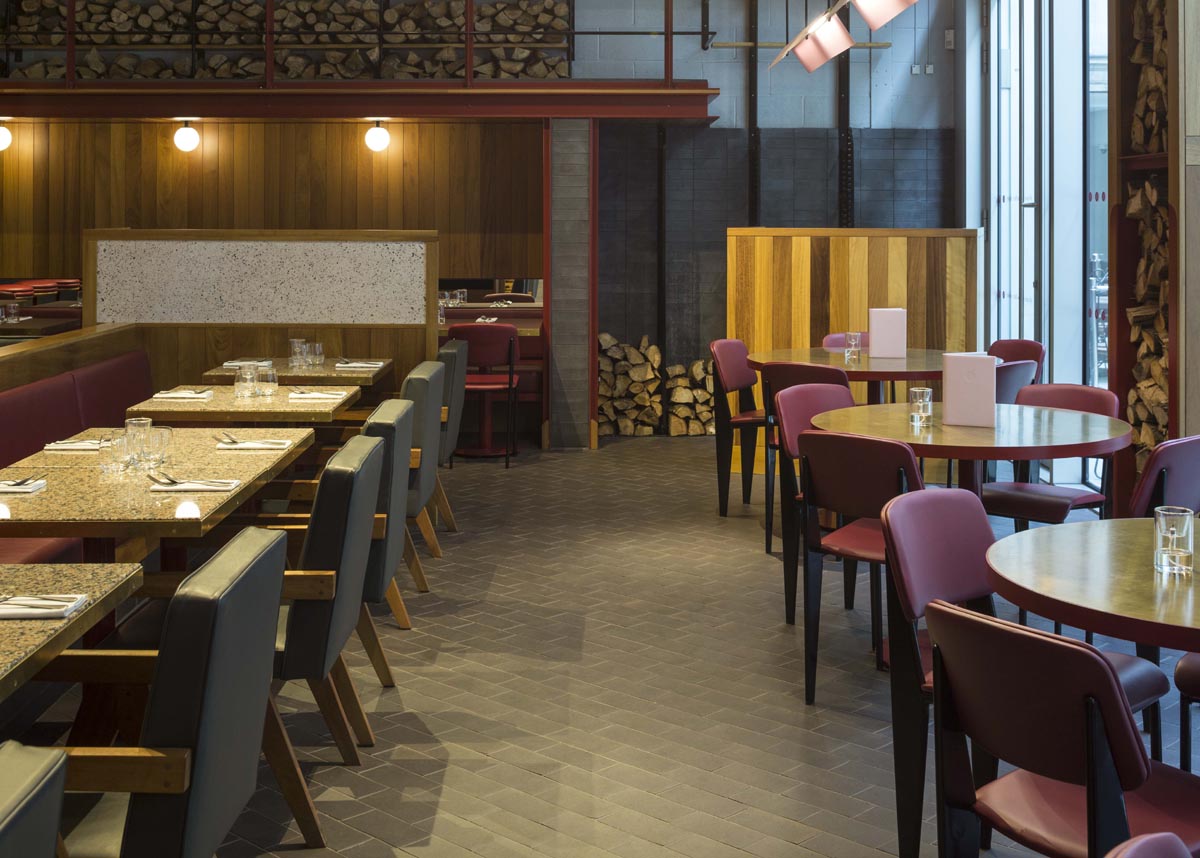

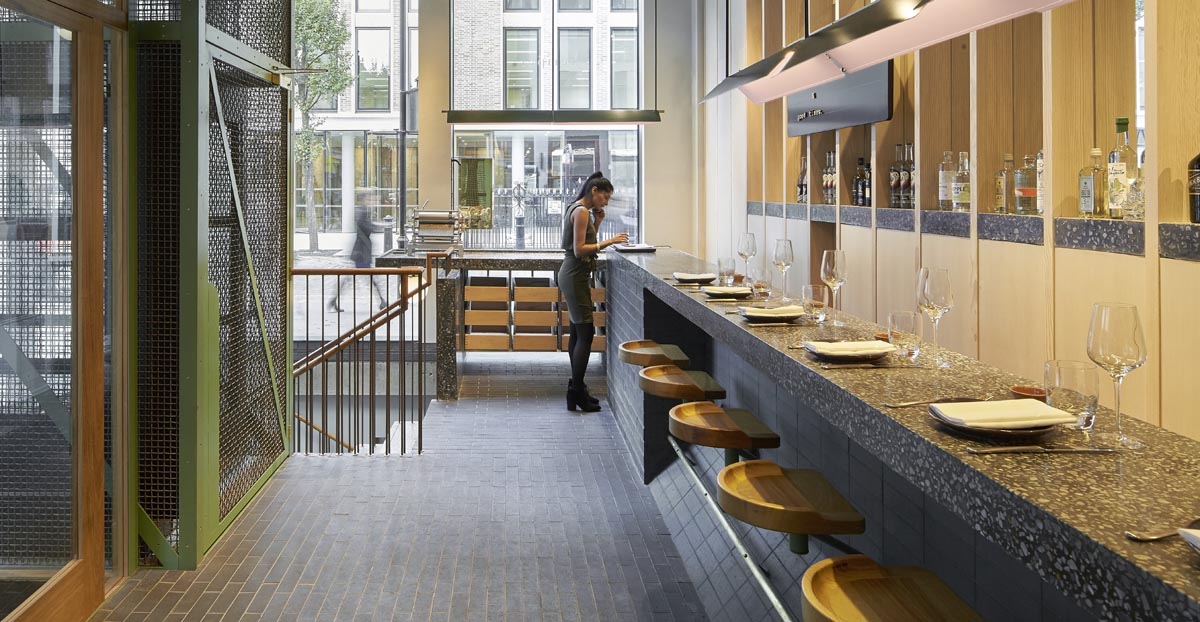

The Temper Restaurant in Soho is a new basement barbecue restaurant designed by Gundry & Ducker Ltd that opened in November 2016.  It was fitted out by Blue Crow Projects who used staffordshire blue brick sized quarry tiles for the floor to great effect.  They have used a running bond in the main areas and a stock bond on the raised floor around the bar.  Matching staffs blue brick slips also feature in a stock bond on the walls.  Full details

Imperial Pub in Chelsea

Imperial 1Imperial 2

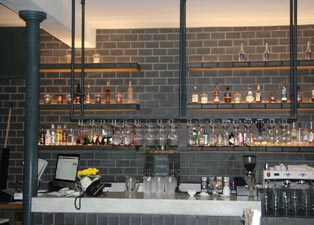

The Imperial is a local Chelsea icon; built in 1870 in the style of a grand villa, it has been a social meeting place on the King’s Road for nearly 150 years. Situated in a conservation area, this historically significant building has recently undergone interior renovations which were designed by Henri Chebaane at Blue Sky Hospitality.  The new look successfully blends Victorian industrial heritage with contemporary chic using Ketley Staffordshire blue quarry tiles and brick slips on the wall of the bar.  Full details

Sudbury Courtyard

Sudbury 2Sudbury 1

Sudbury Courtyard is a recently restored range of historic buildings, previously the Estate maintenance yard, now open as retail shopping outlets and a cafe in the heart of Sudbury village.  Using traditional, authentic materials was very important to the developers in order to retain the atmosphere of this beautiful rural Estate set in the Dove Valley of South Derbyshire.  They used both Staffordshire blue and Staffordshire brown brindle quarry tiles and sealed them which has the effect of darkening the tiles.  Full Details



Details

Ketley Quarry Tiles, sometimes known also as paving tiles or clay floor tiles, are available in a range of natural clay colours and offer similar performance to traditional quarry tiles.  For restoration projects our Quarry Tiles offer a very good match to the discontinued Hawkins and Dennis Ruabon Quarry tiles which can be found in many parts of the UK.   They offer excellent slip resistance and suit most flooring and wall cladding applications indoors or externally, in commercial premises or the home.  They can also be used with underfloor heating systems as they are good conductors.

18mm thick, Ketley Quarry tiles  are manufactured from the proven Etruria Marl clay, which becomes dense when fired, and is hard wearing and resistant to acids, alkalis, oils, grease and fats.  In pendulum tests where anything higher than 36 indicates low slip potential, they score a dry value average of 63 and a wet value average of 55 meaning they have excellent slip resistance in both wet and dry conditions. They can be classified as R11 and Category C which is the highest rating for slip resistance according to BS EN 14411.

Fittings

Quarry Tile Fittings

Coved Skirting Stretcher Mockup

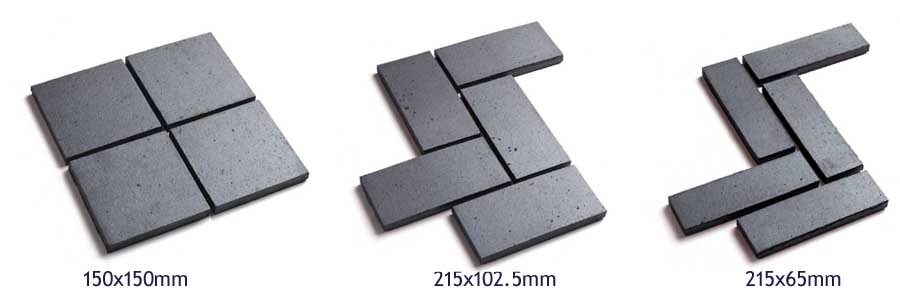

These products shown here match our rectangular quarry tiles 102mm x 215mm.  Similar products are available to match our squares 100mm x 100mm and 150mm x 150mm.  Please contact us for further details.

Round Edge Long - KQTREL
round edge long

Round Edge Short - KQTRES

round edge short

Double Round Edge - KQTREX

Double Round Edge

Step Tread - KQTST

step tread

Coved Based Round Top - KQTCBRT

Coved base round top

Coved Based Round Top External - KQTCBRTX

coved base round top external

Eco

Place of Manufacture: Brierley Hill, UK
Environmental Management: 14001     Download Certificate
Quality Management : 9001                     Download Certificate

Download the Ketley Quality and Environmental Policy

Life Cycle: BRE Global Certification in accordance with  EN 15804:2012  Download Certificate
Energy: Cured in gas fired kilns to 1130C
Raw materials: Etruria Marl Clay from our local quarry in Brierley Hill, sand
Lifespan:  Ketley's bricks are the toughest and most durable bricks you can buy.
Recyclability: Can be crushed and used as aggregate and/or as an inert bulk fill
Packaging: We keep packaging to a minimum using wooden pallets and we do not shrink wrap our brick packs.

Find out more about Ketley's approach to sustainability

Click for the Brick Development Association infographic on Sustainability of Brick

See below the latest video about Sustainability of Brick from the Brick Development Association

Tech Spec

Ketley Quarry Tiles for flooring

Standard: BS EN 14411:2012

Ketley Quarry Tiles are manufactured from the same clay, using the same processes as the Ketley 50mm and 65mm pavers and deliver the same technical characteristics of very low water absorption, very high strength and unrivalled frost resistance.

Quarry Tile Joint size Coverage per m2
215x102mm 10mm 40
215x102mm 6mm 42
215x102mm 5mm 43
215x65mm 10mm 60
150x150mm 10mm 40

Packing On pallets -  1350 pieces on a pallet for 215x102mm size   pallet weight (incl pallet) 1240kg
                                        1100 pieces on a pallet for 150x150mm size   pallet weight (incl pallet) 1010kg
                                        1890 pieces on a pallet for 215x 65mm size    pallet weight (incl pallet) 1155kg

Weight per unit          215x102mm size - 0.9kg   150x150mm size - 0.9kg   215x 65mm size  0.6kg

Download Ketley Quarry Tile Specification Sheet

Download Ketley Quarry Tile Specification clause as a word document

Properties

BS EN 14411 Group A1b requirement

Typical values for Ketley Quarry tiles

DIMENSIONS AND SURFACE QUALITY
                                  length x width
215mm x 102mm
215mm x 65mm
100mm x 100mm
150mm x 150mm
average tolerance +/-2% to an individual maximum of +/- 4mm
length 215mm+/-2.5mm
width 102.5mm+/-1.5mm
                                   Thickness (18mm)
average tolerance +/-10%
+/-1mm
                              Straightness of sides
within ± 0.6%
0.2%
                                     Rectangularity
within ±1%
0.2%
Surface flatness
centre curvature ± 1.5%
centre curvature +/-1.5mm
edge curvature ± 1.5%
edge curvature +/- 1mm
warpage ± 1.5%
warpage +/- 1.5mm

PHYSICAL PROPERTIES


Breaking Strength
Min 1100N
2995N
Water Absorption
0.5 < 3%
1.5%
Resistance to deep abrasion
Max 275mm³
106mm³
Frost resistance
Value to be stated
No damage after 100 cycles
Slip resistance
Pendulum test results exceeding 36 indicate low slip potential
Dry value av 96
Wet value av of 58
on Slider 55 for Staffs Blue
Dry value av 63
Wet value av of 55
on Slider 96 for Brown Brindle

Inclined platform in shod conditions
Category R11 which indicates that they are considered not to be slippery in wet or greasy conditions.
Inclined platform in wet barefoot conditions
Category C which is the highest rating for slip resistance.



Bond strength
C2 Cementatious adhesives
>1.0 N/mm²
Reaction resin adhesives
>2.0N/mm²
Mortar
0.15N/mm²
Moisture expansion
No requirement
Negligible
Reaction to fire
Value to be stated
A1
CHEMICAL PROPERTIES
Resistance to staining


Minimum requirement 3

Paste stain 5
Chemical/oxydising stain 4
Film stain 3
Chemical Resistance

NPD



Laying

Laying Quarry tiles

Download our guide to laying and cleaning Quarry Tiles

Download Ardex guide to fixing Ketley Quarry Tiles

During the floor laying operation the areas being treated should be accessible to no-one but the floor layers and should not be subjected to traffic until the bedding has stiffened and sufficient bond has developed between the bedding and the tile.  The floor should be kept clean and free from cement and plaster droppings.

As a general guide the following fixing should be followed;

  1. A joint width of between 6 & 10 mm
  2. A bedding layer to be approximately 6mm for cement based adhesives, 15-25mm for cement mortar and up to 70mm for a semi dry bed.
  3. A screed would normally be applied with a thickness of 50mm.
  4. A separating layer may be used to isolate the slips or paving tiles and their bedding from the base, preventing stresses in the base affecting the floor finish.  This method is not recommended for exterior applications.

When a screed is applied, the concrete base must be at least 4 weeks old.  The screed must then be allowed to mature for at least 2 weeks before fixing commences, during which time it must be protected from rain and frost.

Bedding directly to the base can be used where the base is completely matured and where there is no risk of further shrinkage movement or where a damp-proof membrane is incorporated between the concrete base and screed.  This method is suitable for external applications.

Care should be taken to incorporate appropriate falls and movement/expansion joints within the design of structure.

A suitable damp-proof membrane should be incorporated in the construction.

Quarry tiles should only be laid on a rigid bed with no voids underneath so the load applied to them is transferred through to the base.  In situations where heavy loads are involved the strength of the installation can be improved by the use of a thicker paver as the transverse breaking load of a clay paving product is directly related to its thickness where all other factors are equal.  It is advisable to select the material to resist the most arduous conditions likely to be imposed during the life of the product.

Grouting
Grouting of quarry tiles laid with wet cement-sand mortars or adhesives should not be carried out for 12 hours after laying the quarry tiles. Where a semi-dry mix method is used, tiles should be grouted within 4 hours of laying to ensure a full bond between the grout and the bedding.

Board should be laid over the tiled area to spread the load of the tiler when carrying out the grouting operation. The grouting mortar should be adapted for the width of the joint with a lower ratio of cement for wider joints. A mixture of 1:1 cement to fine dry sand by volume mixed to a paste with only the minimum of water for workability, should be used for joints of less that 3mm and a ratio of 1:3 for joints wider than 6mm.  Avoid too wet a mix, as this will dry out rapidly and the grouting will crack and break out. Work in the grout in small joints with a squeegee action. In wider joints pointing is recommended.  After the joints have been filled, scatter a dry 1:3 or 4 mortar mix over the joints: allow to dry for about 5 to 10 minutes, then brush away excess loose material with a soft bristle brush. Finally clean off the tiles with water and a cloth, avoid excess watering of the tiles in this operation.

If an impervious joint is required, additives may be used in the grout mix or proprietary ready grouts can be used. However advice should be sought from the manufacturers as to their suitability for the application.  Attention should be paid to cleaning any proprietary grout or grouts mixed with additives off the surface of the Quarry tiles immediately.

Tiles should be cleaned as work proceeds. Such cleaning should be minimal with good workmanship.

For further information on fixing products and their suitability for your project please refer to the manufacturers listed below.

Instarmac www.instarmac.co.uk     They supply a fully BS7533 compliant Ultrascape’s Mortar Paving System developed for constructing rigid paved areas offering a minimum construction life of 40 years.  Relevant case studies, data sheets and COSH information can be downloaded from their website.

Cleaning

Cleaning and Maintenance

Download our guide to laying and cleaning Quarry Tiles

Under normal circumstances Quarry Tiles require little maintenance and can be kept clean by sweeping then washing with warm water to which a suitable non-soapy detergent has been added.

Clean and dry flooring surfaces possess a low slip potential, the majority of slip accidents occur in the presence of a contamination between the floor surface and foot. The likelihood of a slip occurring is greatly reduced if contamination is controlled by means of a cleaning and maintenance procedure. In order for a cleaning and/or maintenance regime to be effective there are a number of basic elements that should be considered:
