Angle and Cant Bricks (page 1)

Angle bricks allow brickwork to turn through 30, 45 or 60 degree angles.

Group AN

All special bricks available in Staffordshire blue, brown brindle and red.

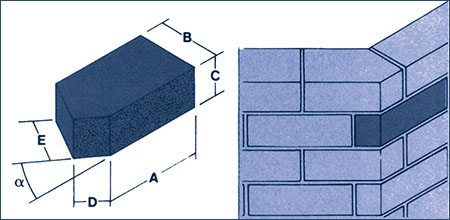

AN.1

Squint

Type No.	A	B	C	D	E	µ
AN 1.1	164	102	65	51	89	30o
AN 1.2	164	102	65	51	94	45o
AN 1.3	164	102	65	51	117	60o

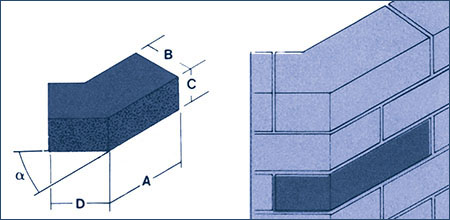

AN 2

External angle

Type No.	A	B	C	D	µ
AN 2.1	1591)	102	65	102	30o
AN 2.2	1591)	102	65	102	45o
AN 2.3	1591)	102	65	102	60o
AN 2.4	2152)	102	65	102	30o
AN 2.5	2152)	102	65	102	45o
AN 2.6	2152)	102	65	102	60o

Note:

1)Suitable for quarter bond without cutting

2)Suitable for half bond without cutting

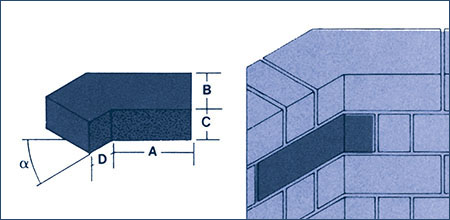

AN 3

Internal angle (dog leg)

Type No.	A	B	C	D	µ
AN 3.1	1642)	102	65	51	30o
AN 3.2	1642)	102	65	51	45o
AN 3.3	1642)	102	65	51	60o
AN 3.4	1591)	102	65	102	30o
AN 3.5	1591)	102	65	102	45o
AN 3.6	1591)	102	65	102	60o
AN 3.7	2152)	102	65	102	30o
AN 3.8	2152)	102	65	102	45o
AN 3.9	2152)	102	65	102	60o

Note:

1)Suitable for quarter bond without cutting

2)Suitable for half bond without cutting



AN 4

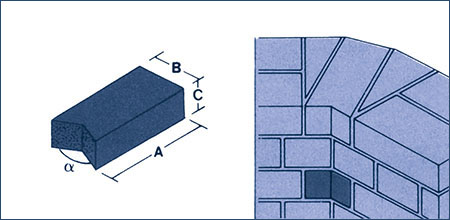

Birdsmouth

Type No.	A	B	C	µ
AN 4.1	215	102	65	120o
AN 4.2	215	102	65	135o
AN 4.3	215	102	65	150o







Cant Bricks

 Single cant bricks are extremely versatile, they can be used on bed to to create a splayed external corner, on edge to provide a capping detail and on end as a sill detail for example.  Double cants are often used for wall capping or as returns for corner angles.

AN 5

Single cant

Type No.	A	B	C	D	E
AN 5.1	215	102	65	46	159
AN 5.2	215	102	65	60	173

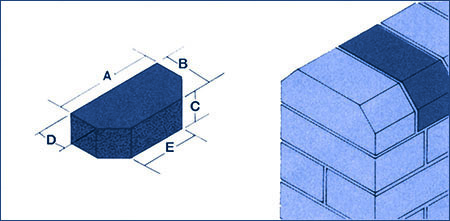

AN 6

Double cant

Type No.	A	B	C	D	E
AN 6.1	215	102	65	46	103
AN 6.2	215	102	65	60	131

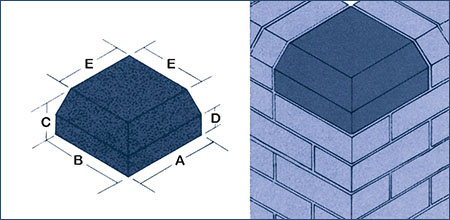

AN 7

Single cant external return

Type No.	A	B	C	D	E
AN 7.1	215	215	102	46	159
AN 7.2	215	215	102	60	173

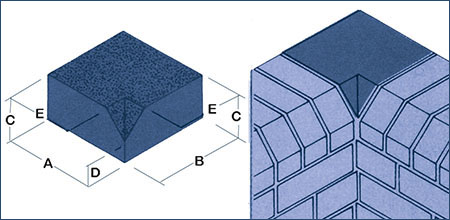

AN 8

Single cant internal return with internal mitre(square external corner on bed)

Type No.	A	B	C	D	E
AN 8.1	215	215	102	46	159
AN 8.2	215	215	102	60	173

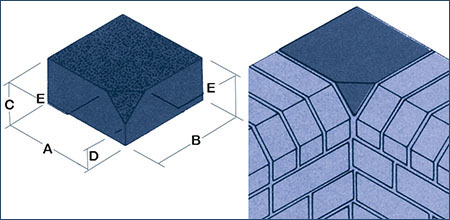

AN 9

Single cant internal return with internal slope (square external corner on bed)

Type No.	A	B	C	D	E
AN 9.1	215	215	102	46	159
AN 9.2	215	215	102	60	173







AN 10

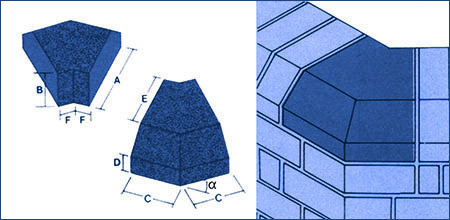

Single cant external angle

Type No.	A	B	C	D	E	F	µ
AN 10.1	215	102	159	46	159	101	30o
AN 10.2	215	102	159	60	173	101	30o
AN 10.3	215	102	159	46	159	70	45o
AN 10.4	215	102	159	60	173	70	45o
AN 10.5	215	102	159	46	159	35	60o
AN 10.6	215	102	159	60	173	35	60o

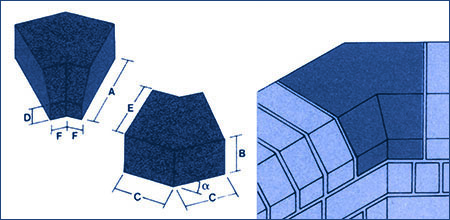

AN 11

Single cant internal angle

Type No.	A	B	C	D	E	F	µ
AN 11.1	215	102	159	46	159	101	30o
AN 11.2	215	102	159	60	173	101	30o
AN 11.3	215	102	159	46	159	70	45o
AN 11.4	215	102	159	60	173	70	45o
AN 11.5	215	102	159	46	159	35	60o
AN 11.6	215	102	159	60	173	35	60o



AN 12

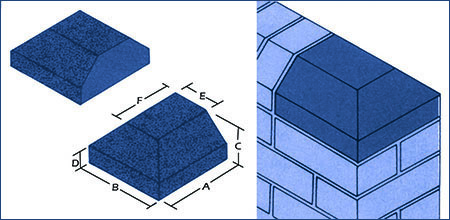

Double cant stop end (square corners on bed)

Type No.	A	B	C	D	E	F
AN 12.1	215	215	102	46	103	159
AN 12.2	215	215	102	60	131	173
