Angle and Cant Bricks (part 2)

Group AN

All special bricks available in Staffordshire blue, brown brindle and red.

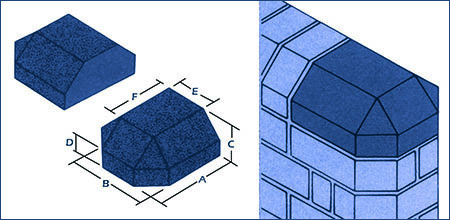

AN 13

Double cant stop end (canted corners on bed)

Type No.	A	B	C	D	E	F
AN 13.1	215	215	102	46	103	159
AN 13.2	215	215	102	60	131	173

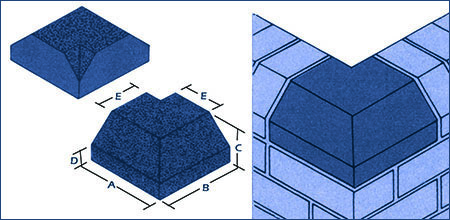

AN 14

Double cant external return with internal mitre(square corners on bed)

Type No.	A	B	C	D	E
AN 14.1	215	215	102	46	103
AN 14.2	215	215	102	60	131

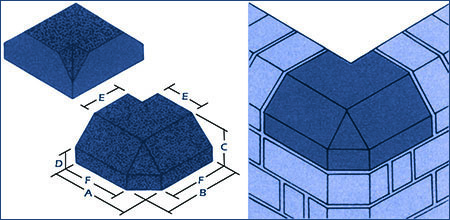

AN 15

Double cant external return with internal mitre(canted corners on bed)

Type No.	A	B	C	D	E	F
AN 15.1	215	215	102	46	103	159
AN 15.2	215	215	102	60	131	173

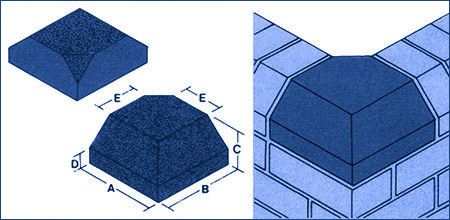

AN 16

Double cant external return with internal slope (square corners on bed)

Type No.	A	B	C	D	E
AN 16.1	215	215	102	46	103
AN 16.2	215	215	102	60	131

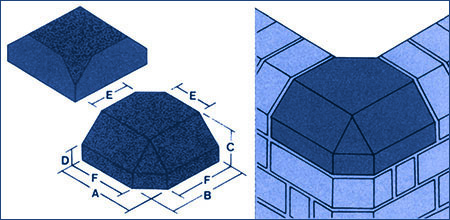

AN 17

Double cant external return with internal slope (canted corners on bed)

Type No.	A	B	C	D	E	F
AN 17.1	215	215	102	46	103	159
AN 17.2	215	215	102	60	131	173

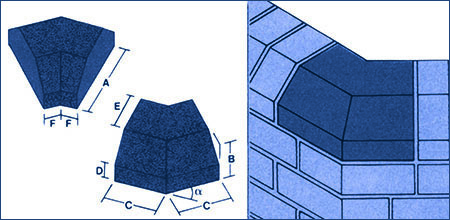

AN 18

Double cant angle

Type No.	A	B	C	D	E	F	µ
AN 18.1	215	102	159	46	103	101	30o
AN 18.2	215	102	159	60	131	101	30o
AN 18.3	215	102	159	46	103	70	45o
AN 18.4	215	102	159	60	131	70	45o
AN 18.5	215	102	159	46	103	35	60o
AN 18.6	215	102	159	60	131	35	60o
